JPR INDUSTRIES

Supporting your projects with reliable structural, fabrication, and civil services.

From trusses and PEB structures to dismantling and reinstallation — we deliver complete on-site solutions.

    Get Free Quote





    Our Servies

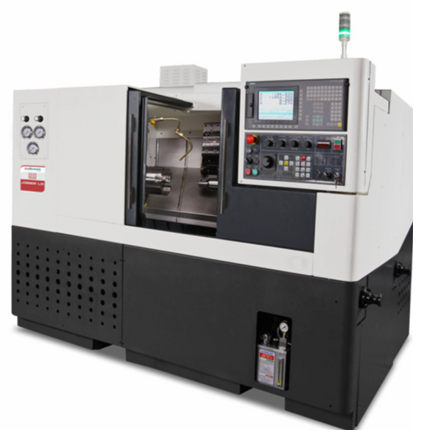

    CNC TURNING

    Make-Ace Micromatic
    Model -Jobber XL

    Fanuc 7.5/11 KW Siemens 9/13.8 KW

    HTP-80 8 station (25 X 25 shank size)

    Maximum turning % 350 mm Maximum turning length 643 mm

    Linear motion guideways / Hardened and grounded box type guideways / Roller Guide ways

    A2-6 spinle with % 200 mm chuck size

    step-up Z-axis constructio

    Capacity

    DescriptionUnitsValues
    Swing Over Bedmm550
    Distance Between Centersmm615
    Maximum Turning Diametermm290
    Between Center Turning Diametermm260
    Maximum Turning Lengthmm643
    Max. Turning Length from Chuck Jaw Facemm525



    Axes

    SpecificationUnitsValues
    X-Axis Strokemm165
    X-Axis Rapidm/min30
    X-Axis Guideways LM guideways / Hardened & Ground Box Type Steel
    Z-Axis Strokemm400
    Z-Axis Rapidm/min30/20
    Z-Axis Guideways LM guideways / Hardened & Ground Box Type Steel

    Spindle

    Specification Units Values
    Spindle Size/Nose A2-5
    Max. Bar Capacity* mm 42 / 36
    Bore Through Spindle mm 52.5
    Max. Spindle Speed rpm 4000
    Spindle Motor Power (Fanuc – Continuous) kW 5.5
    spindle Motor Power (Fanuc – 15 min) kW 7.5
    Spindle Motor Power (Siemens – Continuous) kW 5.5
    Spindle Motor Power (Siemens – S6-40%) kW 7.2
    Full Power Range (Fanuc) rpm 1333 – 3000
    Full Power Range (Siemens) rpm 667 – 3000
    Standard Chuck Size mm 200

    Tooling

    Specification Units Values
    Number of Stations 8
    Max. Boring Bar Dia mm 40
    OD Turning Tool Size mm 25 X 25

    Tailstock

    Specification Units Values
    Tailstock Base Travel mm 235
    Tailstock Quill Travel mm 100
    Tailstock Quill Dia mm 80
    Tailstock Quill Taper MT-4

    Hydraulic System

    Specification Units Values
    Hydraulic Pump Capacity Ipm 14
    Hydraulic Power Pack Tank Capacity I 45
    System Pressure Kg/cm2 30

    CNC TURNING

    Make-Ace Micromatic
    Model -SJE 10 LM / XL / RG

    Fanuc 5.5 / 7.5 kW
    Siemens 5.5 / 7.2 / 8.3 kW

    HTP-80 8 station (25 X 25 shank size)

    Maximum turning % 320 mm Maximum turning length 400 mm

    Linear motion guideways / Hardened and grounded box type guideways

    A2 - 5 spindle

    200 mm chuck size

    Capacity

    DescriptionUnitsValues
    Swing Over Bedmm550
    Distance Between Centersmm615
    Maximum Turning Diametermm290
    Between Center Turning Diametermm260
    Maximum Turning Lengthmm643
    Max. Turning Length from Chuck Jaw Facemm525



    Spindle

    Specification Units Values
    Spindle Nose A2-6
    Bore Through Spindle mm 63
    Front Bearing Bore mm 100
    Maximum Bar Capacity mm 51
    Maximum Spindle Speed rpm 3500
    Spindle Motor Power (Continuous/15 min) kW 9 / 11
    Full Power Range rpm 588 – 2917 Fanuc
    Standard Chuck Size mm %200

    Axes

    Specification Units Values
    Type of Guideways LM (Roller Type)
    X-Axis Stroke mm 150
    Z-Axis Stroke mm 643
    X & Z Axes Rapid Rate m/min 30

    Tailstock

    SpecificationUnitsValues
    Tailstock Base Travelmm410
    Tailstock Quill Travelmm100
    Tailstock Quill Dia.mm80
    Tailstock Quill Taper MT-4



    Hydraulic System

    Specification Units Values
    Hydraulic Pump Capacity Ipm 14
    Hydraulic Power Pack Tank Capacity I 45
    System Pressure Kg/cm2 30
    Coolant Tank Capacity Litre 150
    Overall Machine Dimension (L x W x H) mm 2460 x 1950 x 1740
    Overall Weight (Without Packing) Kg ~3625

    VMC MILLING

    MAKE :JOTHI RX20 WITH 4 th AXISES
    SIZE: 1000 X 500 X 550

    Key Features

    • High dynamics support rapid up to 40 m/min.
    • High precision 8000 rpm, BT-40 spindle.
    • Fast Auto tool changing, just 2.4 sec.
    • Wider high precisions liner motion guide ways.
    • Pallet changer option available.
    • 90° tilting operator panel.
    • 4th & 5th axis machining by using rotary table.
    • Ergonomic design.
    • Auto & manual coolant.
    • Easy chip evacuation.
    • Electrical with quality device & panel AC.

    Specification

    Category Attribute Unit RX20
    Table Working Table Size (each pallet) Mm 1000 x 530
    T – Slot Dimenstion Mm 4 x 18 x 100
    Distance from Floor to Table Mm 990
    Max. Load on Table Kgf 600
    Capacity X – Axis Travel Mm 820
    Y – Axis Travel Mm 510
    Y – Axis Travel Mm 510
    Distance from Spindle Face to Table Top Mm 125 – 635
    Feed Rapid Traverse ( X, Y, Z Axis) m/min 40
    Cutting feed m/min 10
    Main Spindle Spindle Speed Range Rpm 6000
    Spindle Motor Power – Siemens kW 14.3 / 11
    Spindle Motor Power – Fanuc kW 15 / 11
    Front Bearing Bore Mm 70
    Spindle Nose BT – 40
    Automatic Tool Charger Number of Tool 20
    Max. Tool Dia. Pockets (All / Adj. empty) Mm 80 / 125
    Max. Tool Weight Kg 7
    Max. Tool Height Mm 250
    Accuracy Positioning Uncertainty (p) Mm 0.01
    (As Per VDI / DGQ 3441) Repeatability (PS Medium) Mm 0.005
    Other Data Weight (Approx.) Kg 5450
    Dimensions (Approx.)
    Length Mm 2710
    Weight Mm 2025
    Height Mm 2750

    INDUCTION HARDENING

    MAKE :BRG INDUCTION
    CAPACITY : 40 KW200 FREQUENCY

    Specification

    Specification Details
    Make BRG Induction
    Capacity 40 kW
    Frequency 200 Hz
    Cooling System Water – Cooled
    Inductor Type Customizable
    Control System PLC – based
    Heating Depth Up to 5mm

    About JRP Industries

    Established in 2007, JPR Industries is a leading innovator in precision engineering and industrial solutions. With in-house expertise in CNC turning,VMC milling, broaching and induction hardening, we also excel in manufacturing trusses, towers, and PEB structures.
